Curt 15902 Class V XD Weld-On Receiver Hitch

CURT weld on trailer hitch receivers offer a high-capacity, ready-to-work towing solution for your full-size truck or SUV. They are ideal for large pickup trucks, dually trucks, diesel trucks, service vehicles, flatbeds, chassis cab trucks and much more. These weldable hitches are constructed from high-strength steel and come with a standard receiver tube to accept a ball mount shank, tow hook, winch mount or other heavy-duty accessories. This CURT weld on receiver hitch features a 2-inch receiver with an 11-1/2-inch drop. It fits frames anywhere from 18 inches wide to 43 inches wide. The side plates ship unattached from the center section, allowing for a flexible, adjustable installation and a custom fit. No installation hardware required! This welded universal hitch is also rated as a class 5 hitch, being fully tested to SAE J684 specifications for a gross trailer weight capacity of 15,000 pounds and a tongue weight capacity of up to 1,500 pounds. To protect this weld on receiver hitch from corrosion, it comes shielded with a co-cured finish of liquid A-coat and durable black powder coat. NOTE: Side plates do not come pre-welded.

• VERSATILE FIT — This weld-on hitch features an adjustable design. It fits frames between 18 and 43 inches wide and has heavy-duty side plates for a strong weld. NOTE: Weld-on trailer hitches are not recommended for any electric vehicle (EV) applications

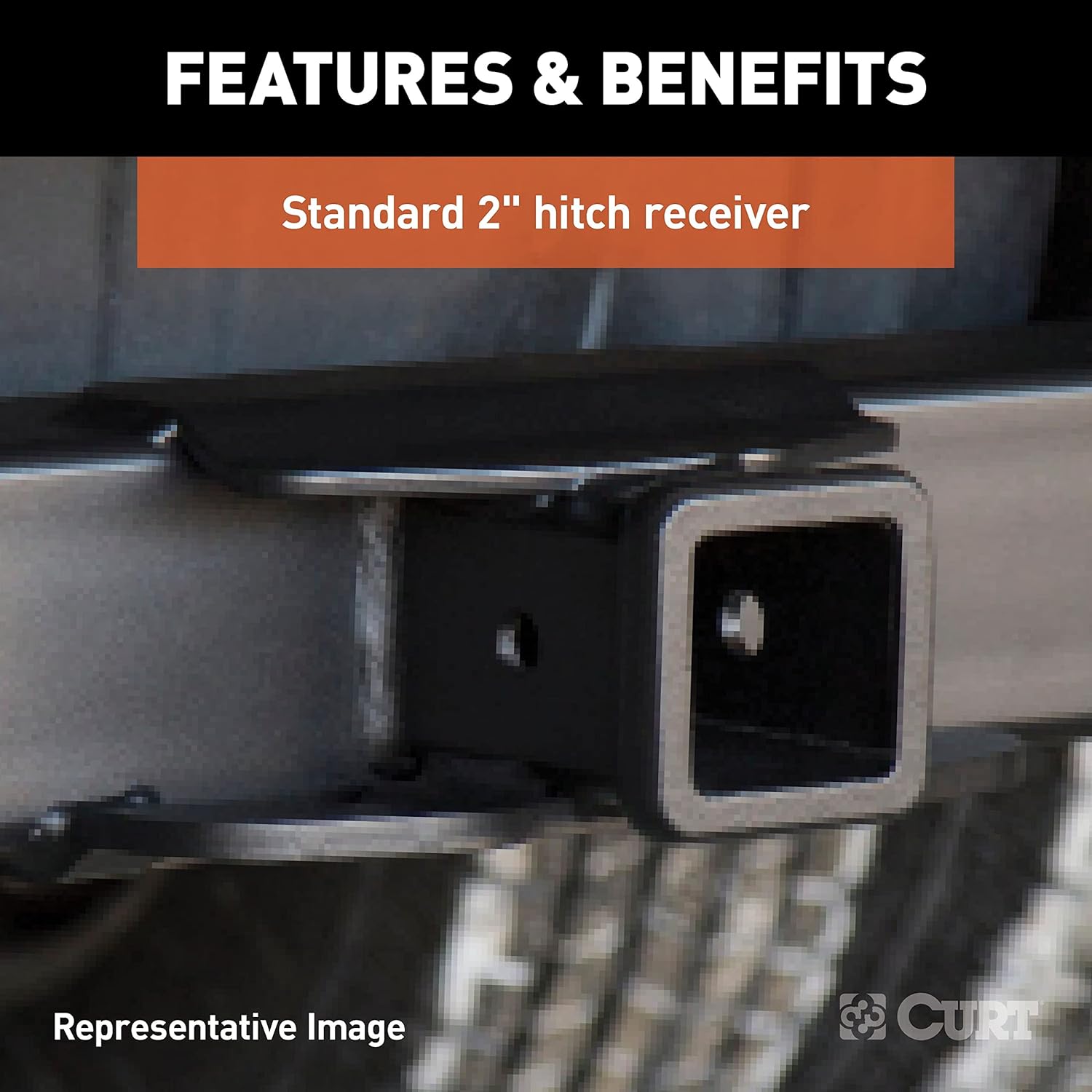

• STANDARD RECEIVER — This class 5 weld-on receiver hitch equips your vehicle with a standard 2-inch x 2-inch hitch receiver, allowing for a wide variety of towing options. It can accept a ball mount, cargo carrier, bike rack, tow hook and much more
• INTEGRATED DROP — This weld-on tow hitch is ideal for large trucks and SUVs. It features a built-in drop of 11-1/2 inches to promote level towing of your truck and trailer
• DEPENDABLE STRENGTH — This weld-on trailer hitch is rated for 15,000 lbs. gross trailer weight and 1,500 lbs. tongue weight (limited to lowest-rated towing component)
• RUST, CHIP, UV-RESISTANT — This weld-on hitch receiver is protected with a dual-coat of rust-resistant liquid A-coat and highly durable black powder coat. The two finishes are co-cured for exceptional resistance to rust, chipping and UV damage
